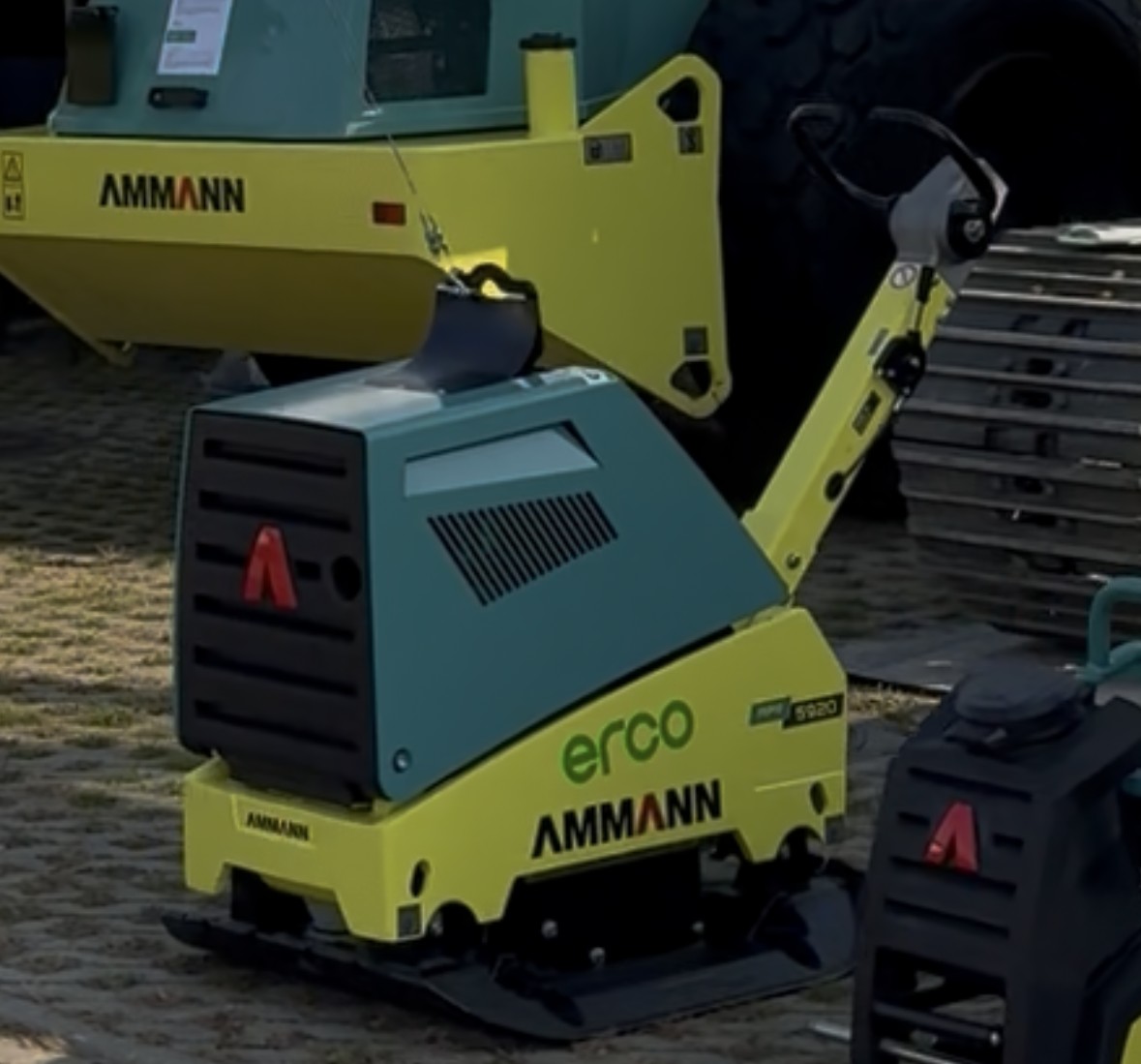

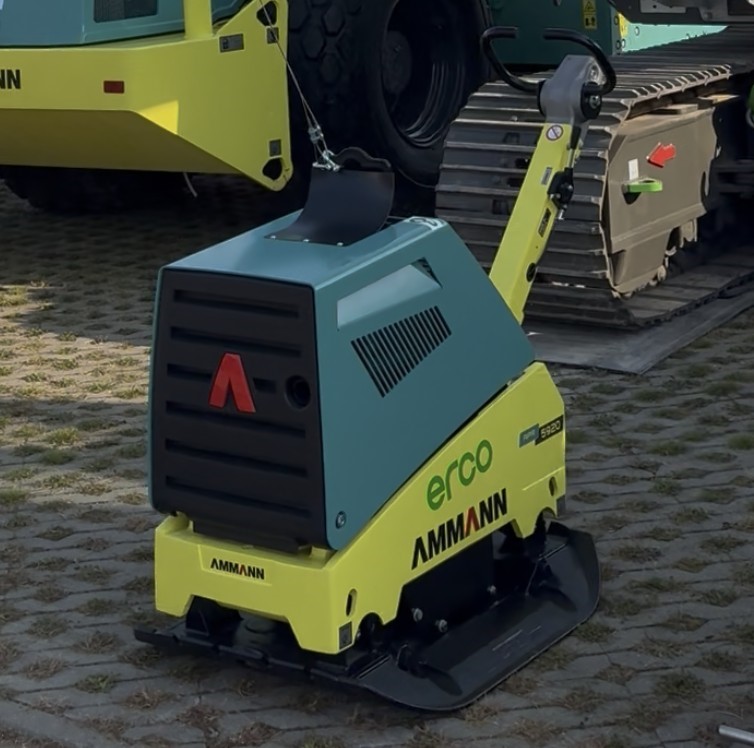

APR 59/20
Category: VIBRATORY PLATES
Manufacturer: Ammann
Year of manufacture: 2024
Emission stage:
Price: € 7 499
Condition: (5)
Technical specifications:
Year of manufacture: 2024
Working width: 600 mm with 75 mm extension plates (included)
Operating weight: 496 kg
Engine power: 6.6 kW
Fuel type: Diesel
Country of manufacture: Germany
Engine: Hatz 1B40
Engine output: 6.6 kW (8.8 HP) @ 2900 rpm
Fuel consumption: approx. 1.6 l/h
Centrifugal force: 59 kN
Vibration frequency: up to 65 Hz
Travel speed: 35 m/min
Gradeability: up to 30%
Max. incline in all directions: 25°
Fuel tank capacity: 5 l
Standard equipment:
Reversible hydraulic drive (forward / reverse)
Twin-shaft exciter unit
Foldable engine cover for easy maintenance
Heavy-duty protection frame with central lifting point
Robust centrifugal clutch with wear-resistant V-belt
Low-vibration handle for operator comfort
3-year extended manufacturer warranty
Condition: New, unused machine.
Description:
The Ammann APR 59/20 is the heaviest reversible vibratory plate in the APR series, designed for intensive soil and surface compaction. With a powerful 59 kN centrifugal force, hydraulic reverse drive and excellent manoeuvrability, it is ideally suited for trenches, kerbs, foundations and larger working areas.
| Operating hours (h) | |
| Weight (CECE) (kg) | 496 |
| Working width (mm) | 600 |
| CE conform | yes |
| Engine type | Hatz 1B40 |
| Engine output (kW) | 7 |
