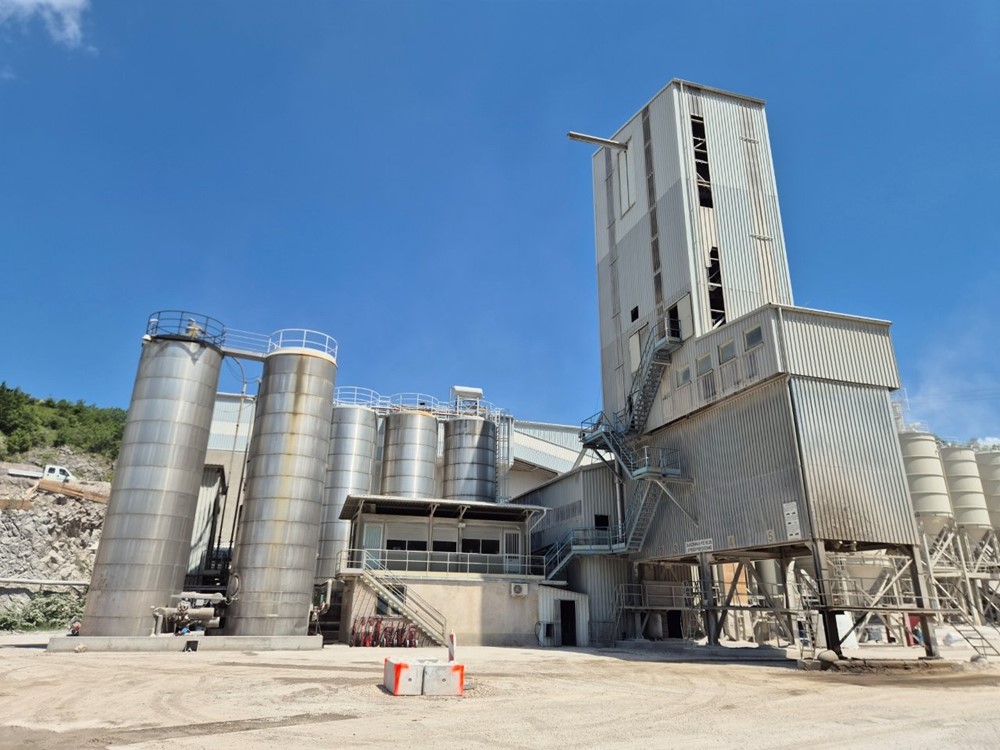

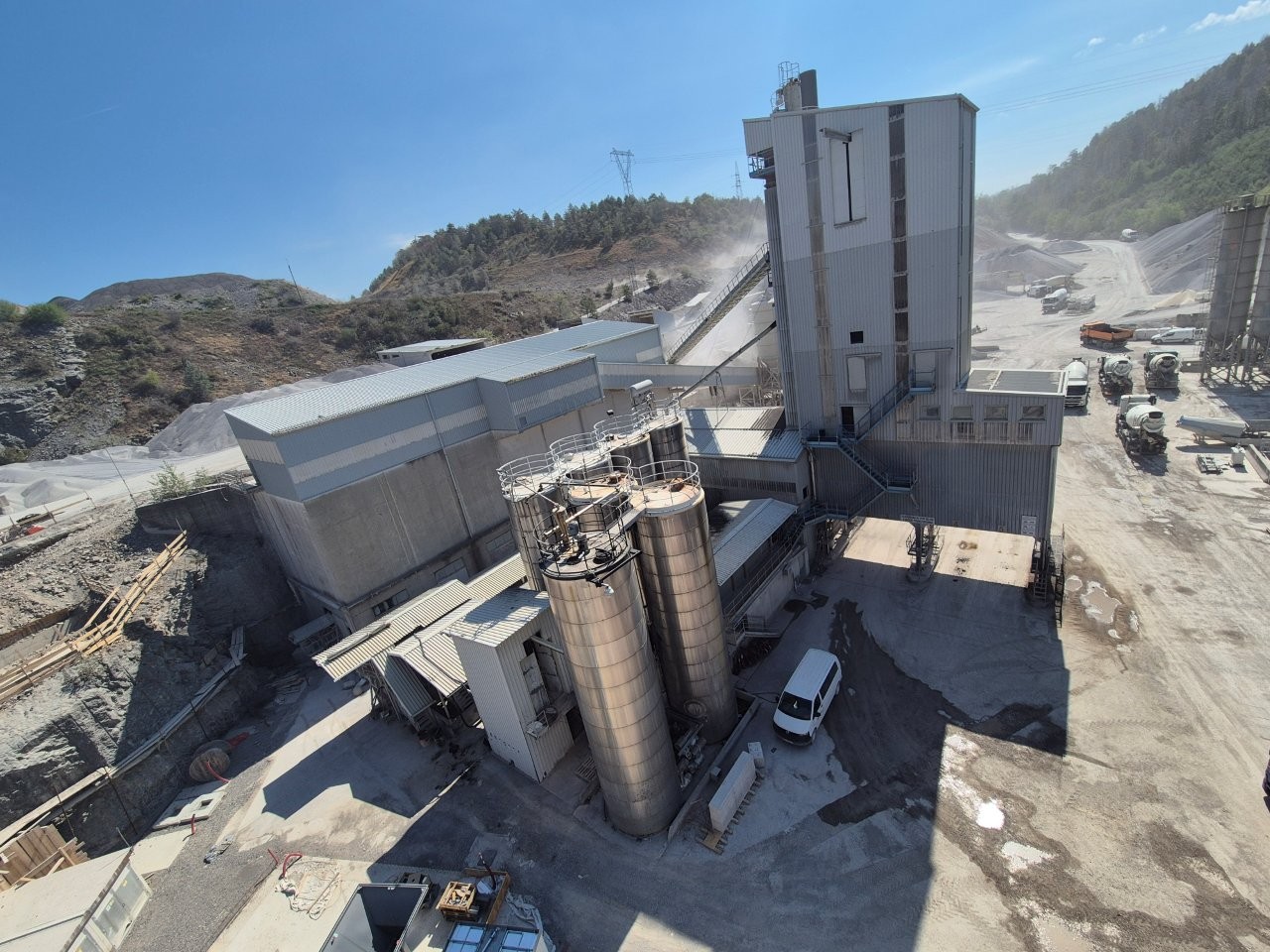

GIBAT Asphalt Mixing Plant 240 t/h
Category: STATIONARY
Manufacturer: C.M.
Year of manufacture: 1995
Emission stage:
Price: Price on request
Condition: (4)
GIBAT ASPHALT PLANT 240 t/h (1995) – Basic Technical Specifications
Available from 1 January 2027 (in operation until then)
Summary
✅ Capacity up to 240 t/h
✅ Twin-shaft mixer 3,000 kg
✅ 540 t bitumen storage capacity
✅ 300 t asphalt mix storage capacity
✅ 800 m² baghouse filtration area
✅ Automatic computer control
✅ Upgraded for cold recycling (15% RAP)
✅ Robust European construction
✅ Suitable for major road and infrastructure projects
General Information
• Manufacturer: GIBAT
• Plant type: stationary batch asphalt plant
• Year of manufacture: 1995
• Nominal production capacity: up to 240 t/h
• Computer-controlled/automatic production control (drying/mixing)
Aggregate Storage
• 16 covered concrete aggregate bins – not included in the sale

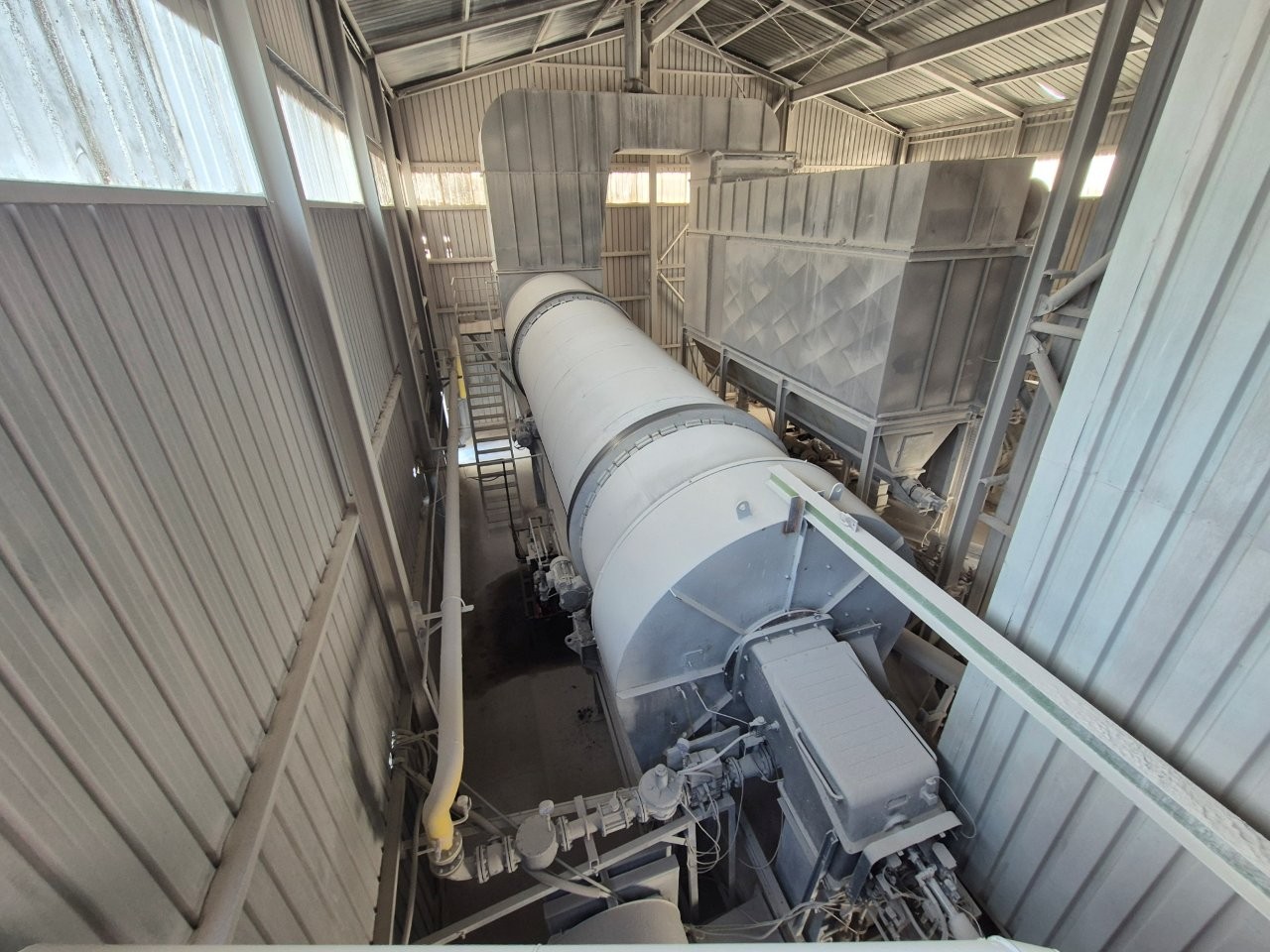

Drying System
• Counter-flow drying drum, new – replaced 3 years ago.
• Drying capacity: 235 t/h
• High-pressure burner (Weishaupt) for fuel oil and gas
• Automatic temperature control
• Infrared aggregate temperature measurement

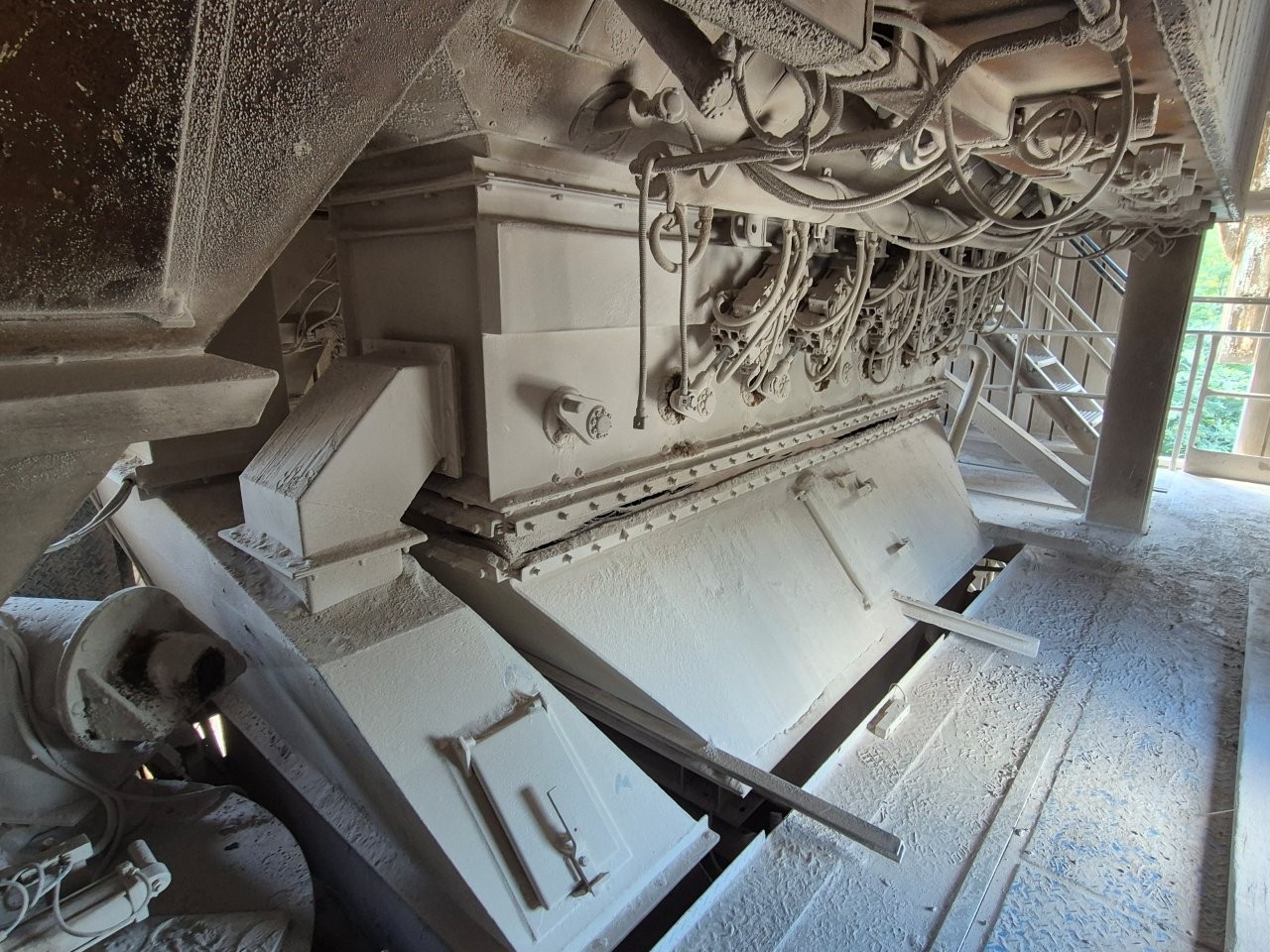

Vibrating Screen
• Linear vibrating screens
• Fractions: 0/2, 2/4, 4/8, 8/11, 11/16, 16/x
Weighing System
• Aggregate scale: 3,000 kg
• Filler scale: 500 kg
• Bitumen scale: 300 kg
Mixing System
• Twin-shaft compulsory mixer
• Batch capacity: 3,000 kg
• Mixer heating with thermal oil
• Infrared asphalt mix temperature measurement
• Designed for the production of:
o AC asphalt mixtures
o SMA asphalt mixtures
o special asphalt mixtures
Filler System
• 2 × imported filler silos: 50 m³
• 1 × recovered filler silo: 110 m³
• Return of recovered filler from the filter
Additive System
• Cellulose fibre silo (Viatop), 100 m³ – not included in the sale
Bitumen System
• 7 × bitumen tanks, 70 t each
• 1 × bitumen tank, 50 t
• Total storage capacity: 540 t
• Heating with thermal oil
• Electronic temperature and level monitoring
• Transfer capability between tanks
Thermal Oil System
• Heating of bitumen and mixer
• Central heater for fuel oil and gas
• Automatic temperature control
Dust Collection
• Baghouse filter
• Filter area: 800 m²
• Return of fine particles to production

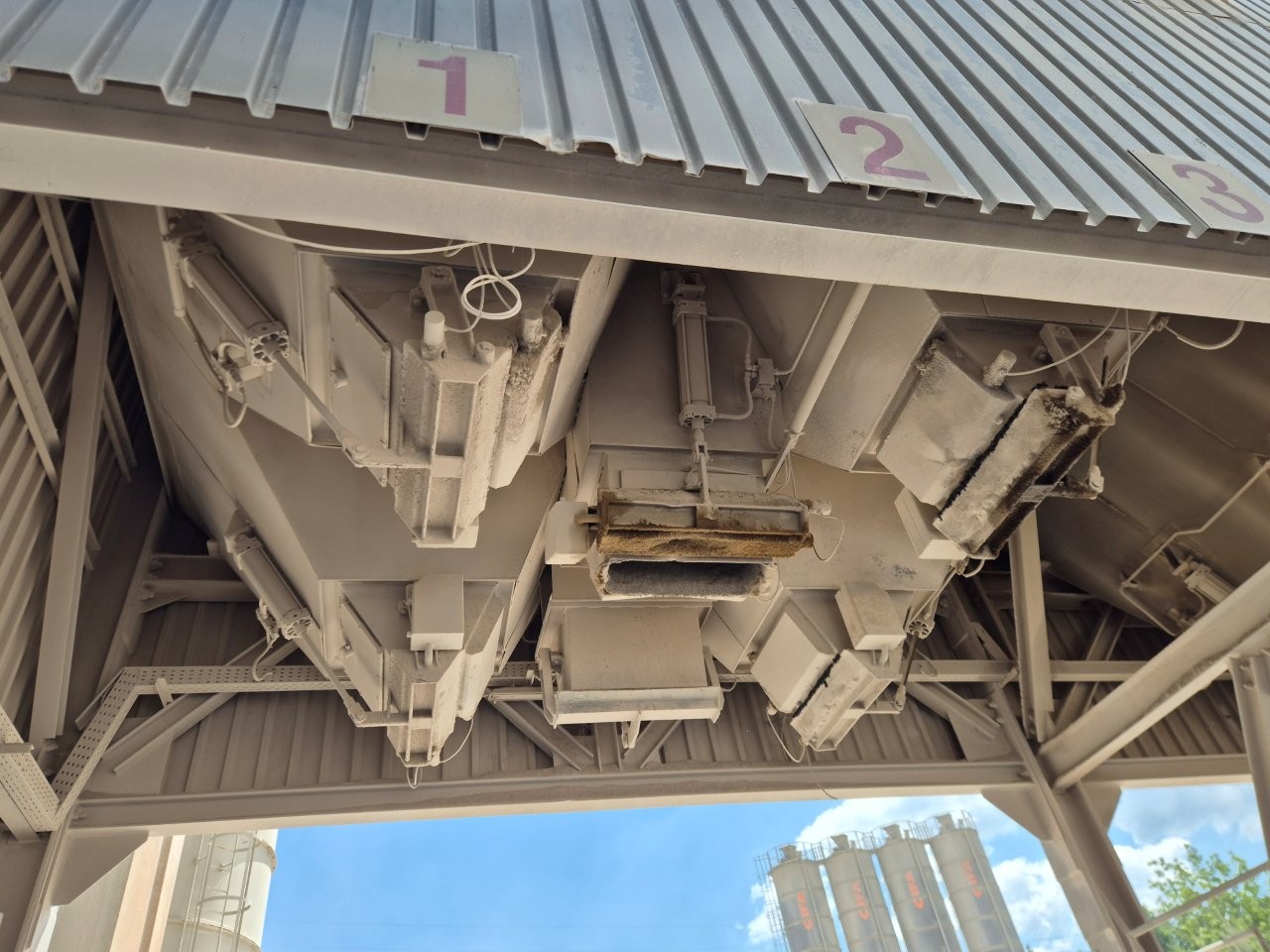

Asphalt Mix Storage Silos
• 2 × silos of 75 t, 2 × silos of 70 t,
• Additional loading silo: 10 t
• Total capacity: 300 t
• Heated discharge outlets
• Pneumatic gate control
RAP (reclaimed asphalt pavement)
• Cold RAP addition (15% RAP)
• Feed hopper 10 m³

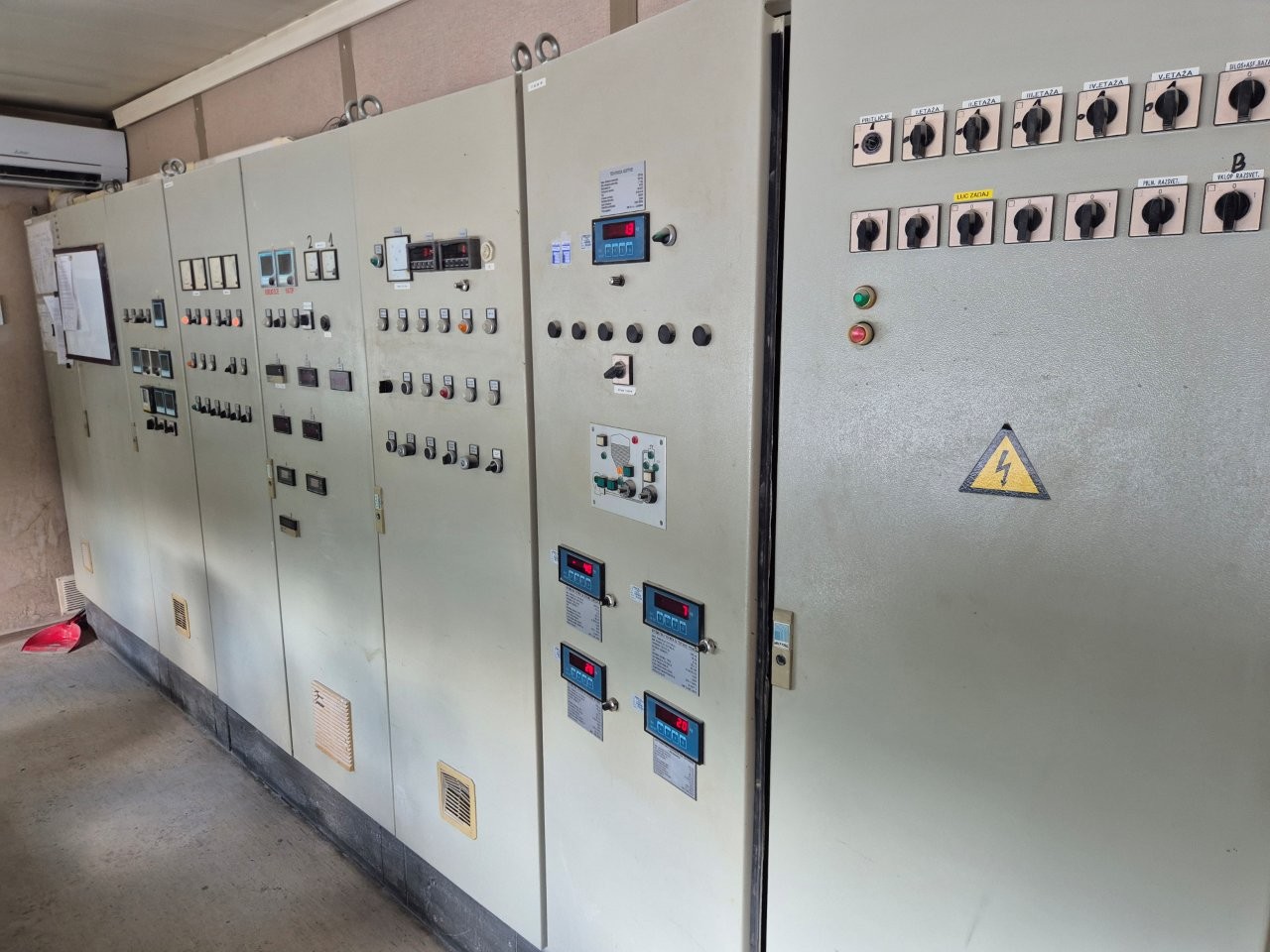

Control System
• Central control cabin
• Two operator screens
• Fully automatic production control
• Recording of all production parameters
• Archiving of production data
• Printing of production reports
| Operating hours (h) | |
| Weight (CECE) (kg) | |
| Working width (mm) | |
| CE conform | no |
| Engine type | |
| Engine output (kW) |
