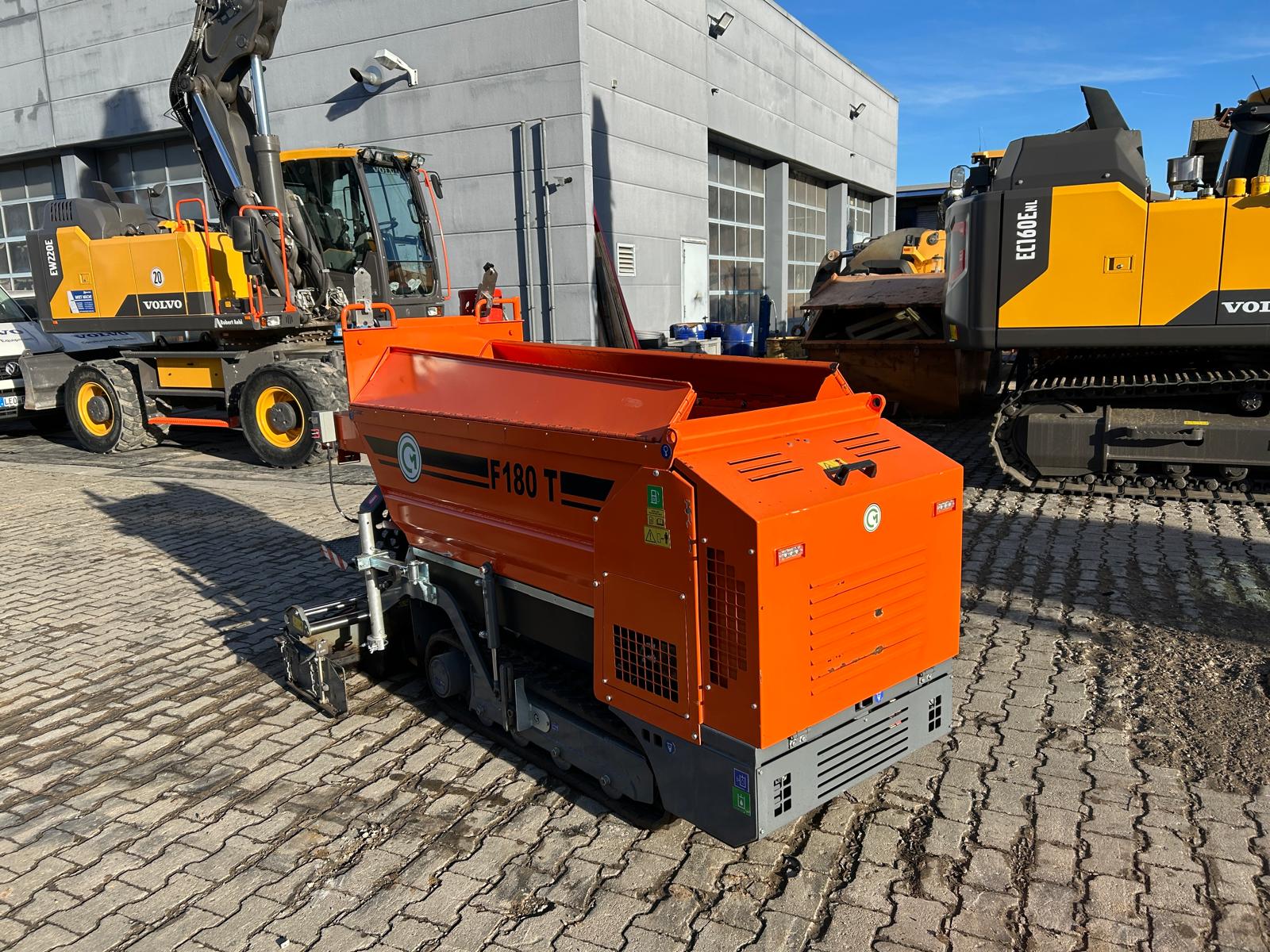

F180T
Catégorie: FINISSEUR SUR CHENILLES
Fabricant: C.M.
Année d'immatriculation: 2022
Catégorie d'émission:
Prix: Prix non renseigné
État: (4)
Liquid-cooled Yanmar diesel engine 2TNV70-ASA
Power output 10.5 kW/360000 rpm.
Fuel tank 16 l
Hydraulic drive with closed circuit
2 pumps, 2 gear motors
Hydrostatic service brake
Spring-loaded multi-disc parking brake, hydraulically released
Track tensioning with spring-loaded grease cylinder
Contact area 1.10 m x 0.18 m
On-board voltage 12 V
Speed 0-50 m/min
Hopper capacity 1.2 t
Theoretical installation capacity 17.9 t/h
Conveyor belt single-strand, reversible
Auger drive together with conveyor belt, reversible
Total weight 1500 kg in standard version
Installation width 800-1350 mm, hydraulically adjustable
Depth of floor plates 160 mm
Thickness of floor plates 6 mm, replaceable
Roof profile +4%/-2%, mechanical adjustment
Propane heating with 3 burners and electronic control
Max. installation thickness 100 mm
Widening kit including augershafts max. 1800mm

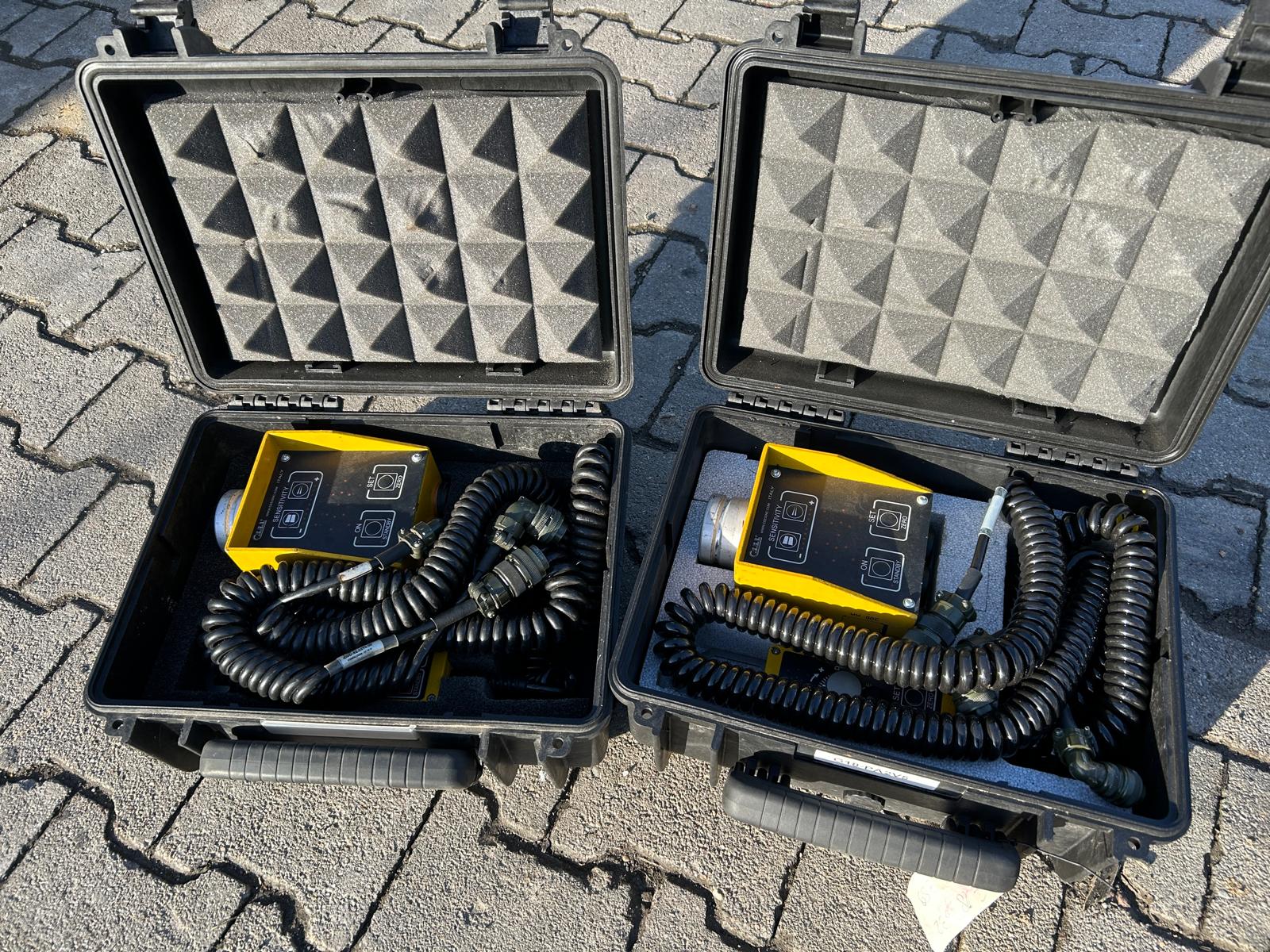

Remote control for variator and tow point on both sides
Leveling system on both sides including mounts
| Heures de fonctionnement (h) | 79 |
| Poids (CECE) (kg) | 1500 |
| Largeur de travail (mm) | 1800 |
| Conforme CE | yes |
| Type de moteur | Yanmar |
| Puissance du moteur (kW) | 10 |
